Instructions

The Conbox is easily assembled from its flat-pack. All you will need is a handheld power drill with a Phillips Head drill bit.

The Conbox package contains:

	Your Conbox will arrive in a flat pack box. In order to complete assembly you will require a handheld drill, with a Phillips Head attachment.

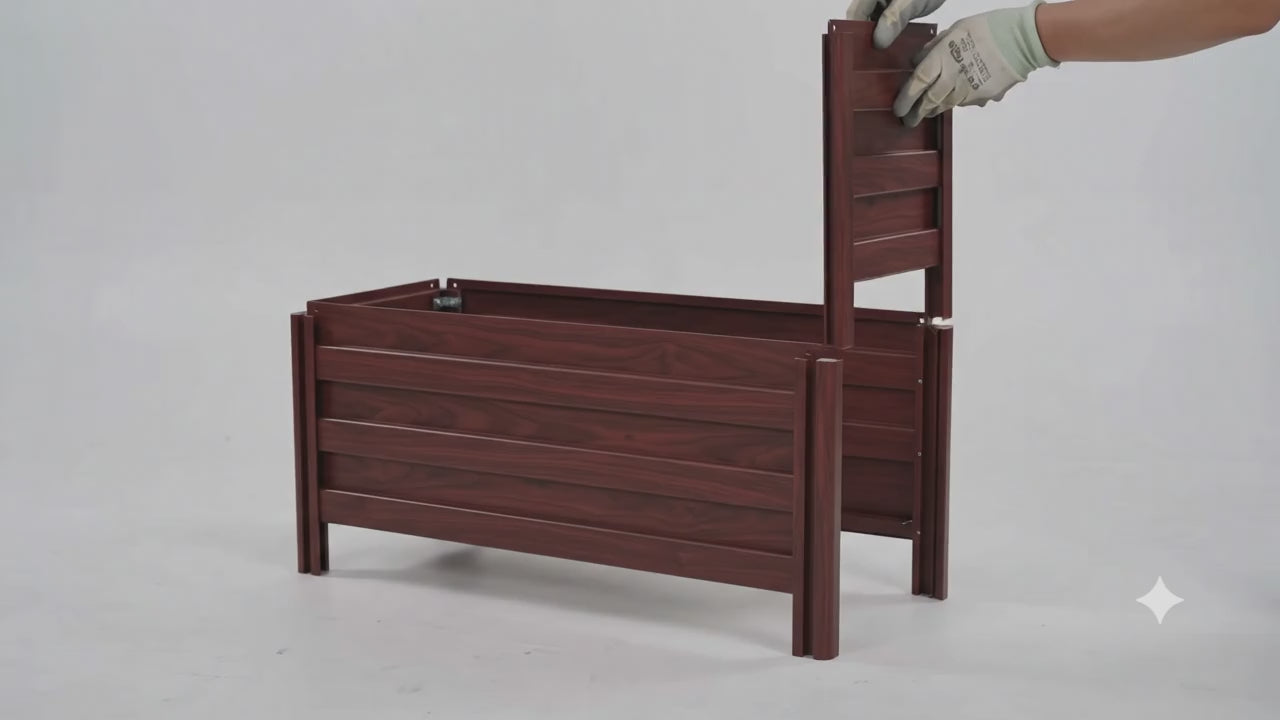

	Open the cardboard box and remove the top panel and the three panelled wall piece. Place the top panel on the top of the three panelled wall piece. Ensure that the box is the right way up (the logo should be at the top).
	There are two holes along the two short edges of the top panel. Use your handheld power drill and drill the 4x Phillips Head self tapping screws through the top panel into the sides. Hold your Conbox in assembled position while drilling.
	You may need a second person to help carefully sit the Conbox on its side. Screw in the 6x screw feet into the pre-cut holes on the bottom. Once the Conbox is in position, the feet can be adjusted to accommodate for uneven surfaces.
	Go to your currently unsightly outdoor unit.
	Push the Conbox over the unit and adjust the feet if the surface is uneven. The feet can be adjusted by screwing on to decrease the height or vice versa. Admire your now beautifully covered outdoor unit, and enjoy your comfortable conditioned air.
