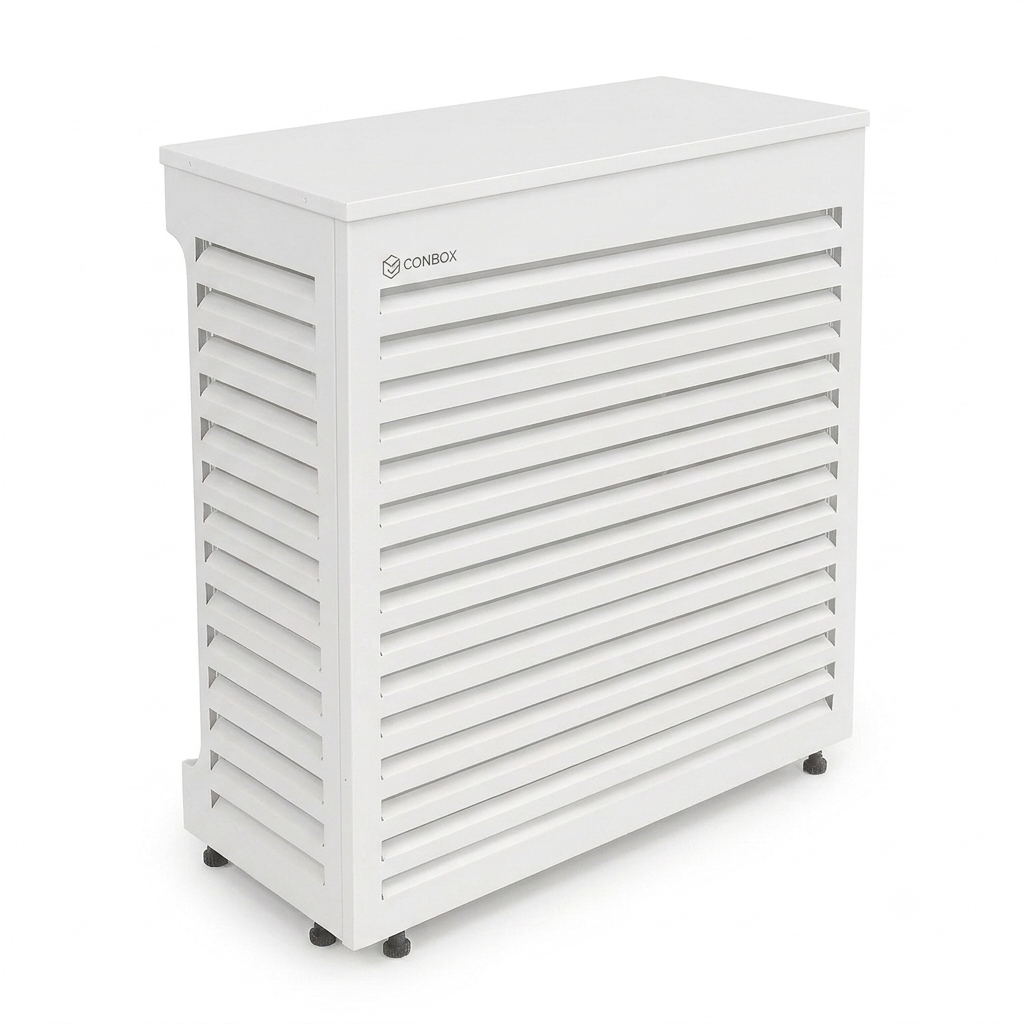

• White BatBox Large home battery cover, product photo

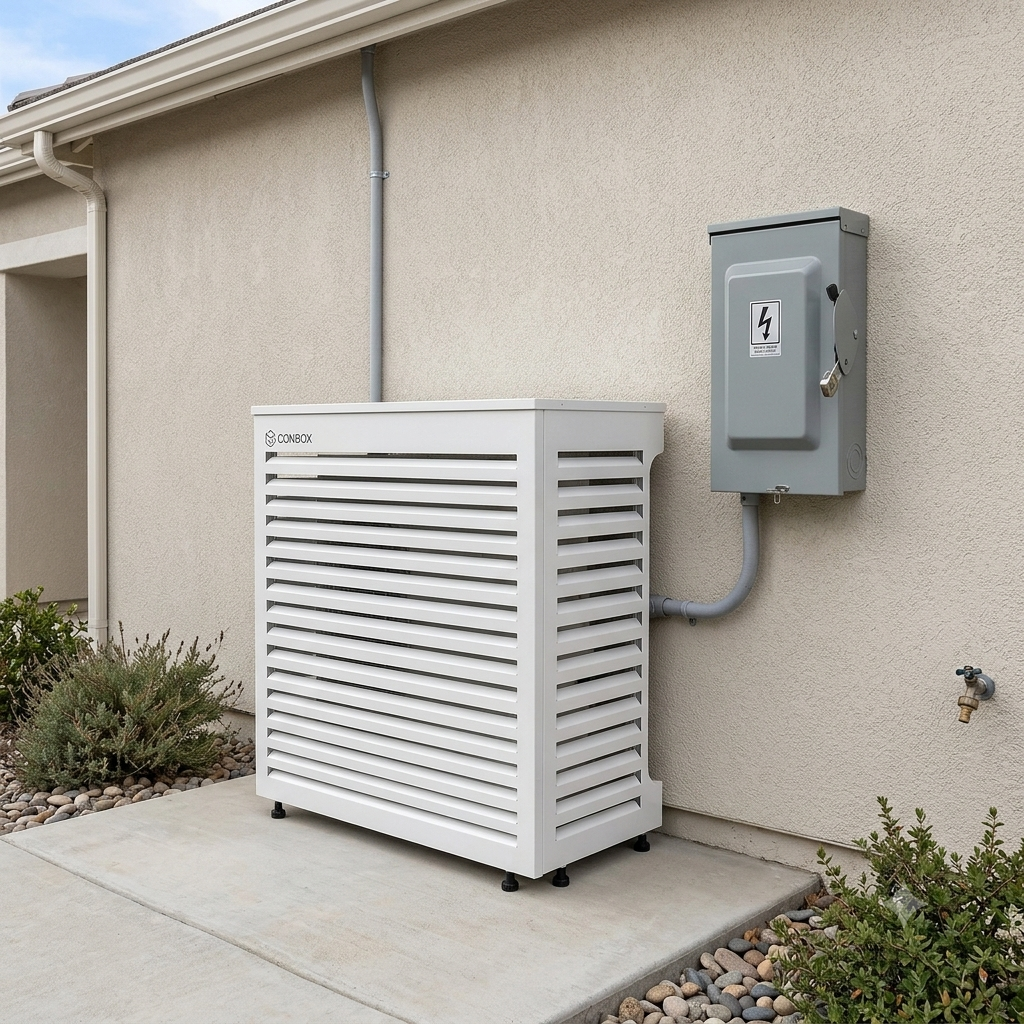

  • BatBox custom size battery cover around a home battery
1 2

CONBOX

5.0 · 2 reviews

BatBox Home Battery Cover, Large, White (W1000 x D400 x H1000 mm)

BatBox Home Battery Cover, Large, White (W1000 x D400 x H1000 mm)

Only 9 left6 recently ordered
$699.00
$799.00 $699.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size: Large W1000 x D400 x H1000 mm
Large$699 Extra Large$799 Custom sizefrom $439

A solid-top aluminium cover that shields your home battery from sun and rain. Fits batteries up to W920 x D360 x H960 mm. Easy assembly, secured with a drill.

Full descriptionFeatures, dimensions and what's in the box

The BatBox Large covers a home solar battery and inverter with a solid aluminium top that keeps direct rain, debris and midday sun off your equipment, while louvred sides let heat escape. It suits popular battery systems such as FoxESS, Tesla Powerwall, Sungrow, BYD, AlphaESS and GoodWe; measure your battery, inverter and conduit first to check the fit.

  • Fits batteries up to W920 x D360 x H960 mm (internal space W940 x D370 x H970 mm)
  • Solid top with no louvres, louvred sides for airflow
  • 2 mm powder-coated aluminium in white: won't rust and suits coastal areas
  • Curved recess, 100 mm deep, at the back, so cables and conduit enter cleanly against the wall
  • Floor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall
  • Easy assembly, secured with a drill (4 stabilising screws)
  • Helps keep children and pets away from live electrical gear
  • Also available in Extra Large and custom sizes

Dimensions (mm)
External: W1000 x D400 x H1000 plus feet
Internal: W940 x D370 x H970 plus feet

In the box
2 x panel sections (4-panel box) in powder-coated aluminium
4 x steel screws
6 x rubber feet, adjustable from 20 to 40 mm

Helpful links
How to measure · Assembly instructions · Delivery and pickup · Returns

SpecificationsSizes, internal space, material, mounting
External sizeW1000 × D400 × H1000 mm, plus adjustable feet
Internal spaceW940 × D370 × H970 mm
Fits units up toW920 × D360 × H960 mm
Material2 mm aluminium, powder-coated
ColourWhite
WeatherWon't rust; suits coastal areas
MountingFloor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall
AssemblyEasy assembly, secured with a drill (4 stabilising screws)
Weight18.0 kg
Batteries that fit (14)Search for your battery brand or model
  • AlphaESS SMILE-BAT-10.1P (10.1 kWh (9.7 usable))
  • AlphaESS SMILE-G3-BAT-9.3S (9.3 kWh)
  • BYD Battery-Box Premium HVS 5.1 (5.12 kWh)
  • Fox ESS EP11 (10.36 kWh)
  • Fox ESS EP6 Plus (5.76 kWh)
  • Fronius Reserva 6.3 (6.3 kWh)
  • LG Energy Solution RESU10H Prime (9.6 kWh)
  • Sigenergy SigenStor (1 x BAT 8.0), e.g. 5T-8 / 10T-8 (8.06 kWh)
  • Sigenergy SigenStor (2 modules), e.g. 10T-10 / 10T-13 / 10T-16 (10.76 to 16.12 kWh)
  • Sungrow SBR064 (6.4 kWh)
  • Sungrow SBR096 (9.6 kWh)
  • Sungrow SBR128 (12.8 kWh)
  • Sungrow SBR160 (16 kWh)
  • Sungrow SBR192 (19.2 kWh)

Based on manufacturer dimensions. Not listed? Compare your unit with "Fits units up to" in Specifications.

QuestionsFit, airflow, pipes, assembly, weather

Will it fit my battery?

The BatBox Large fits batteries up to W920 x D360 x H960 mm, leaving space around the battery. The internal space is W940 x D370 x H970 mm. Bigger battery or a battery plus inverter? Order a custom size.

How do I measure my battery?

Measure the width, depth and height of the battery or battery stack at its widest points, including any brackets or isolators on the sides, then compare with 'Fits batteries up to'.

How do cables get in?

Each side and the top have a curved recess at the back, so conduit and cables run straight in from the wall without cutting anything.

Why a solid top?

BatBox has a solid top panel to shield the battery from direct sun and rain, with louvred front and sides for airflow.

How do cables and conduit get in?

The sides and top have a recess, 100 mm deep, at the back, so cables and conduit run straight in from the wall without cutting anything.

Is it hard to put together?

The panels slot together without tools in under 5 minutes. A drill with a Phillips head bit is then used for the 4 stabilising screws through the top panel, and for wall fixing if you choose to mount it.

Will it rust or handle coastal weather?

It is made from powder-coated aluminium, which won't rust and suits coastal areas.

We ship daily from our partner warehouse in Granville (Sydney), Australia

View full details

Customer reviews

5.0 out of 5 from 2 reviews across the range
