CONBOX

4.9 · 35 reviews

ConBox Air Conditioner Cover, Extra Large, Charcoal (W1200 x D550 x H1600 mm)

ConBox Air Conditioner Cover, Extra Large, Charcoal (W1200 x D550 x H1600 mm)

Regular price $799.00
Regular price $899.00 Sale price $799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

A charcoal louvred aluminium cover that hides your outdoor air conditioner while it keeps breathing. Fits units up to W1120 x D510 x H1560 mm. Easy assembly, secured with a drill.

Full descriptionFeatures, dimensions and what's in the box

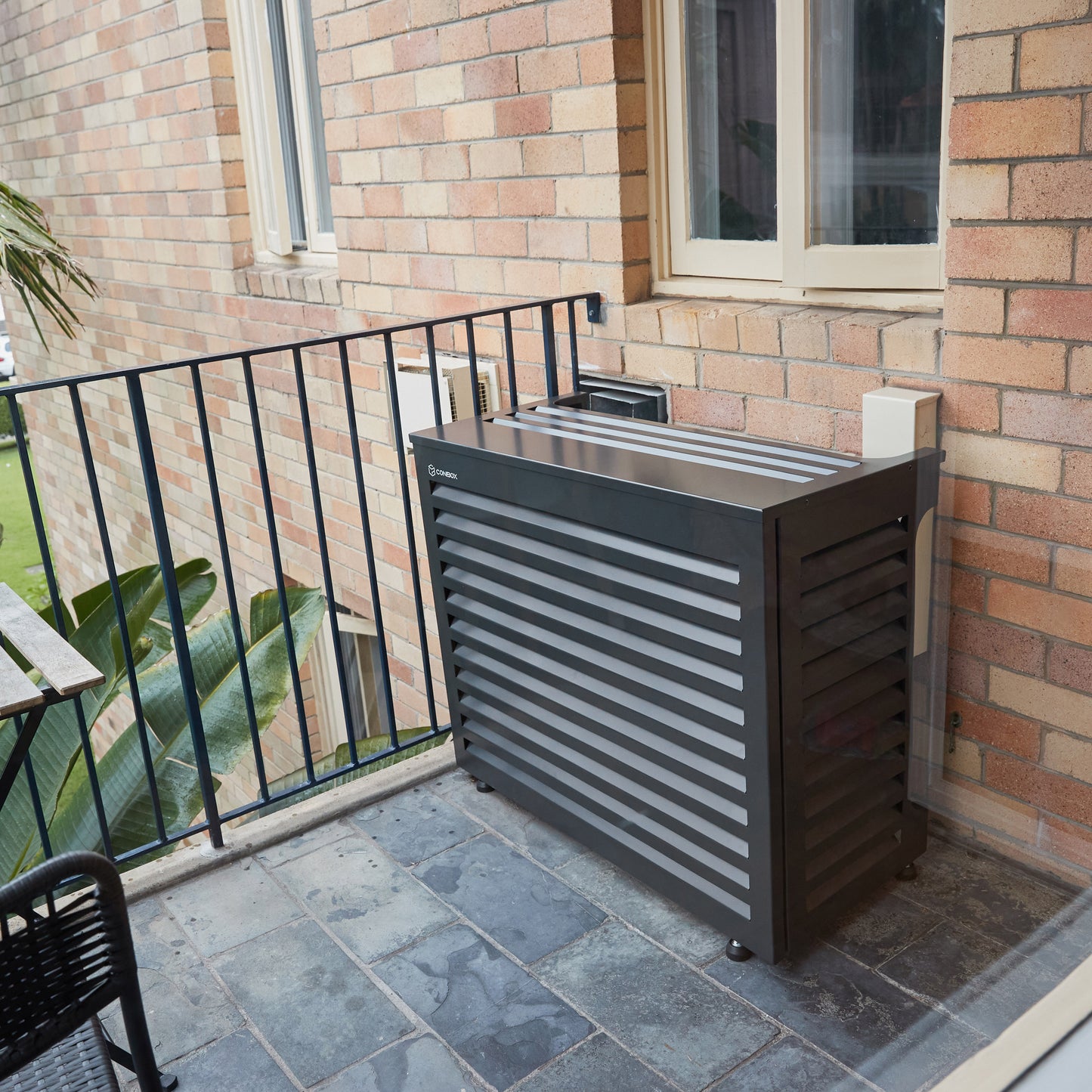

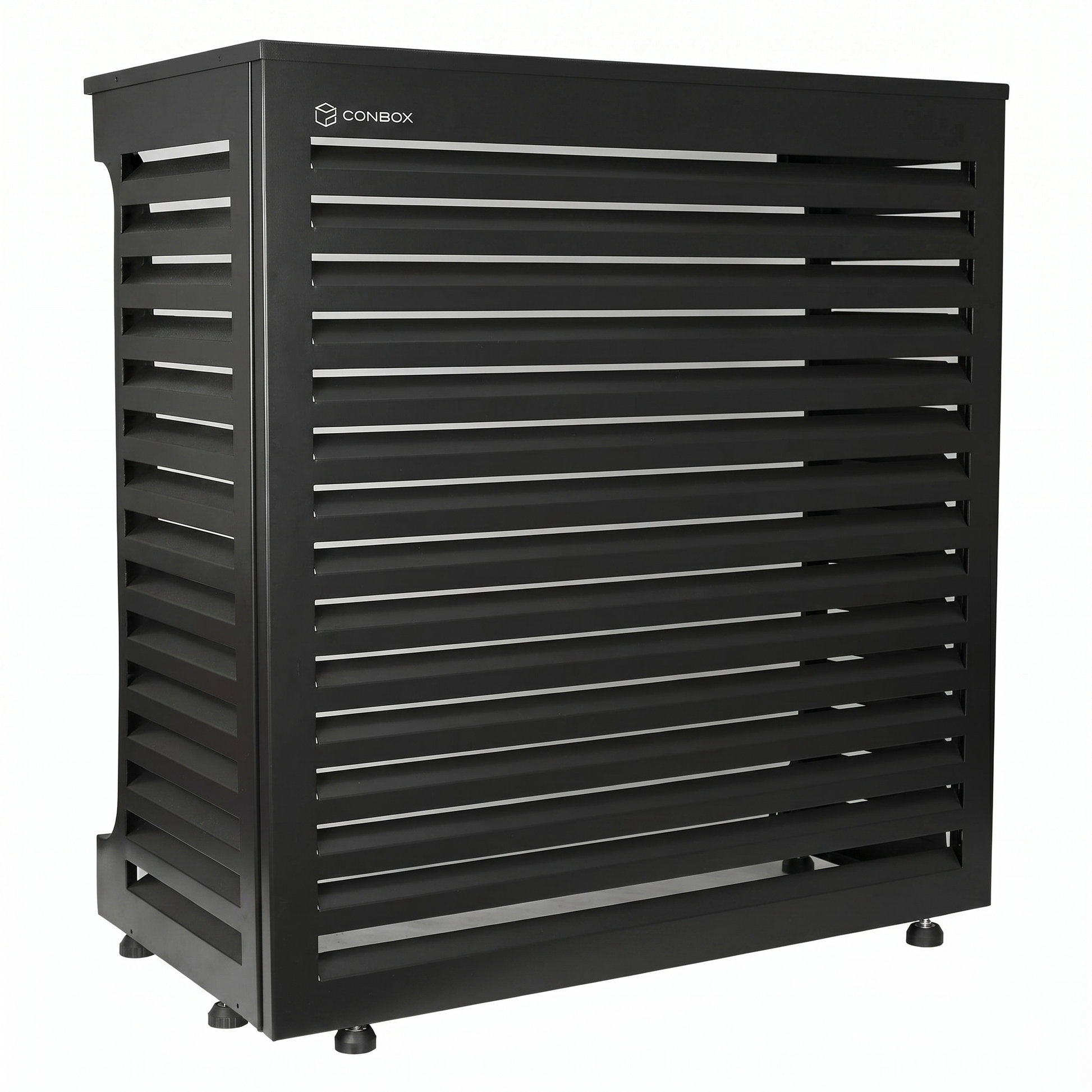

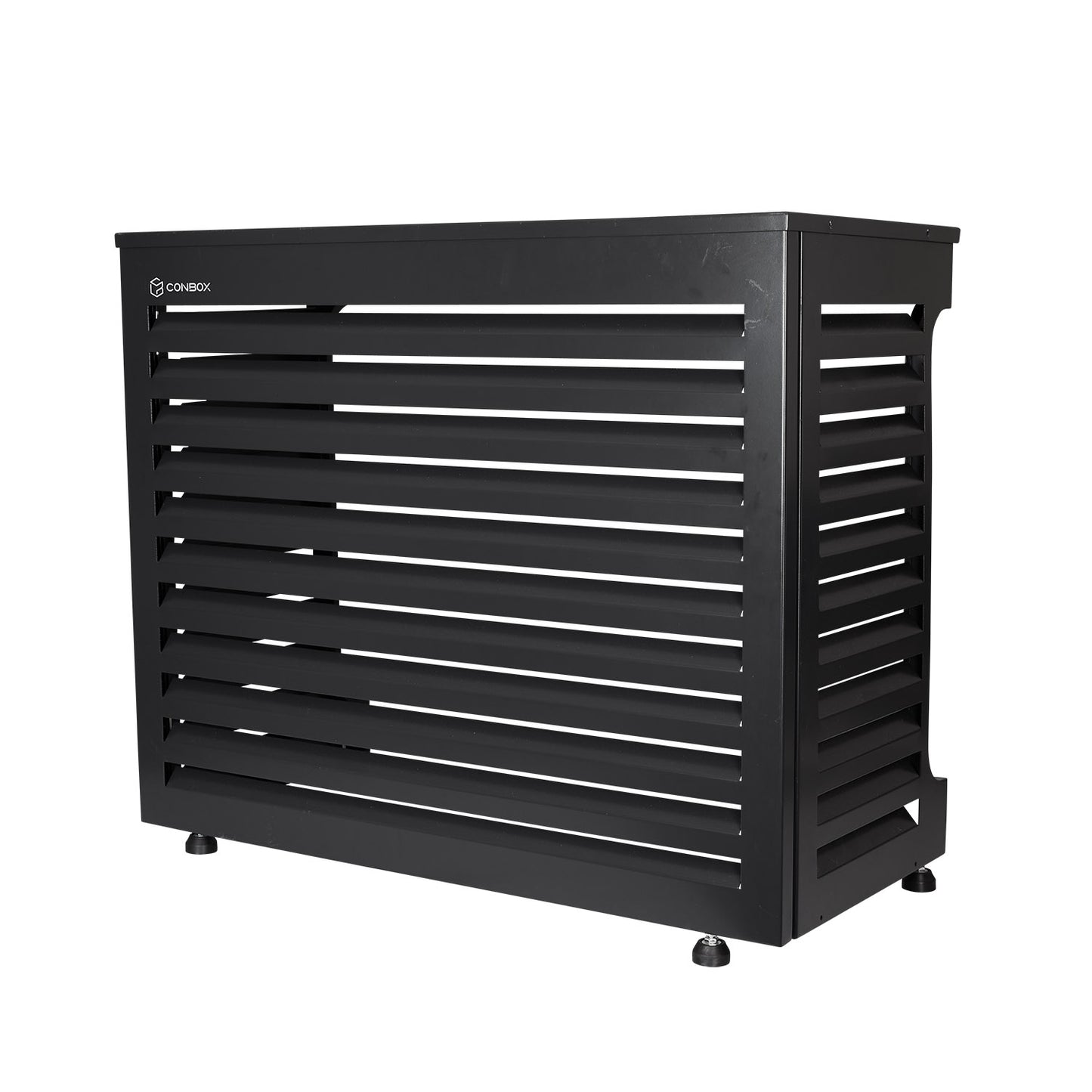

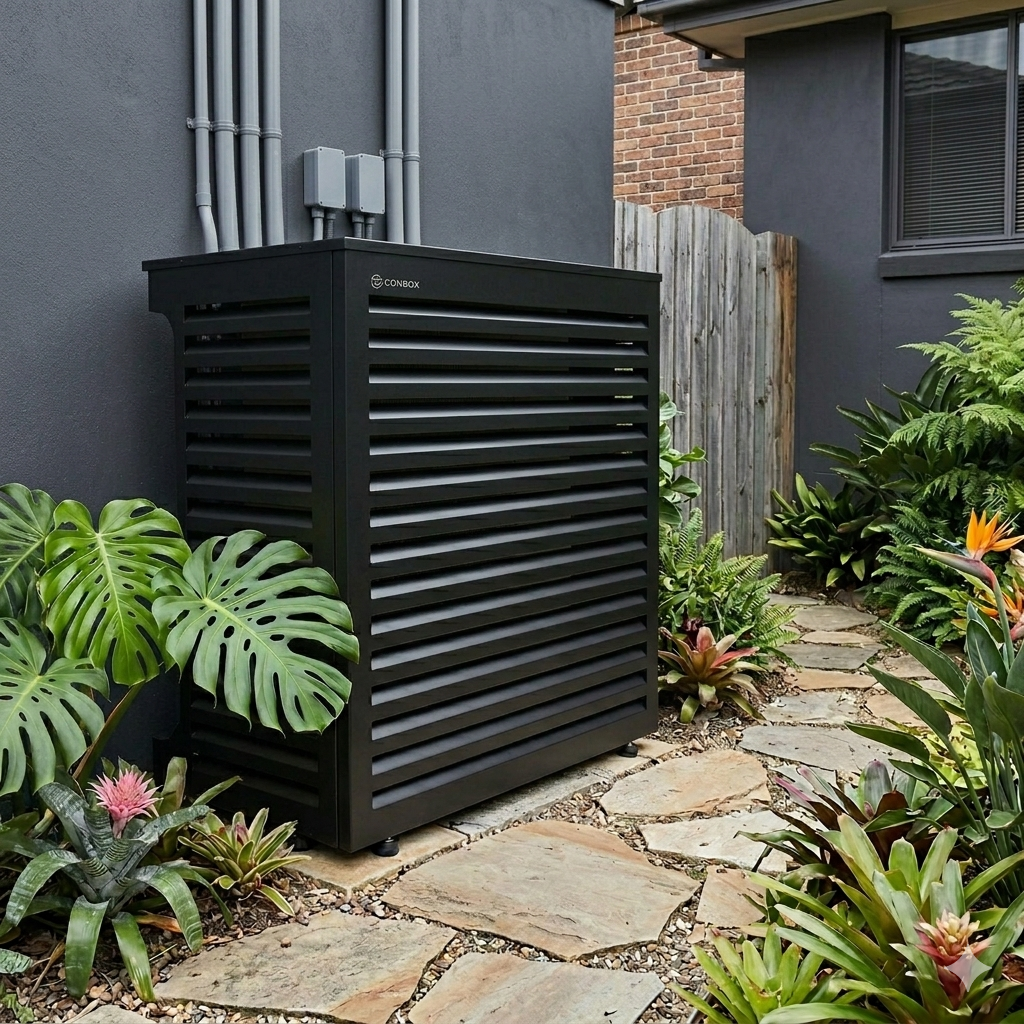

The ConBox Extra Large hides a bulky outdoor air conditioner unit behind a clean, louvred charcoal cover. Louvres on the front, sides and top keep air moving around the unit, and a curved recess at the back lets the pipes run straight in from the wall. It also suits a home battery or inverter that fits the internal space.

  • Fits outdoor units up to W1120 x D510 x H1560 mm (internal space W1140 x D520 x H1570 mm)
  • 2 mm powder-coated aluminium in charcoal: won't rust and suits coastal areas
  • Curved recess, 100 mm deep, at the back of the sides and top, so pipes and cables enter cleanly against the wall
  • Floor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall
  • Easy assembly, secured with a drill (4 stabilising screws)
  • Tall enough for twin-fan outdoor units up to 1560 mm high
  • Also available in white, plus Medium, Large, made-to-order and custom sizes

Dimensions (mm)
External: W1200 x D550 x H1600 plus feet
Internal: W1140 x D520 x H1570 plus feet

In the box
2 x panel sections (4-panel box) in powder-coated aluminium
4 x steel screws
6 x rubber feet, adjustable from 20 to 40 mm

Helpful links
How to measure · Assembly instructions · Wall mounting · Stacking · Delivery and pickup · Returns

SpecificationsSizes, internal space, material, mounting
External sizeW1200 × D550 × H1600 mm, plus adjustable feet
Internal spaceW1140 × D520 × H1570 mm
Fits units up toW1120 × D510 × H1560 mm
Material2 mm aluminium, powder-coated
ColourCharcoal
WeatherWon't rust; suits coastal areas
MountingFloor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall
AssemblyEasy assembly, secured with a drill (4 stabilising screws)
Weight15.0 kg
Popular models that fit (119)Search for your air conditioner brand or model
  • Daikin RXF25AVMA (2.5 kW cooling)
  • Daikin RXF80AVMA (7.8 kW cooling)
  • Daikin RXJ25TVMA (2.5 kW cooling)
  • Daikin RXJ50TVMA (5.0 kW cooling)
  • Daikin RXM35AVMA (3.5 kW cooling)
  • Daikin RXM60AVMA (6.0 kW cooling)
  • Daikin RXM71AVMA (7.1 kW cooling)
  • Daikin RXM85WVMA (8.5 kW cooling)
  • Daikin RXV25AVMA (2.5 kW cooling)
  • Daikin RXV50AVMA (5.0 kW cooling)
  • Daikin RXV71AVMA (7.1 kW cooling)
  • Daikin RXV90WVMA (9.0 kW cooling)
  • Daikin RZA60C2V1 (6.0 kW cooling)
  • Daikin RZA71C2Y1 (7.1 kW cooling)
  • Daikin RZAS71C2V1 (7.1 kW cooling)
  • Daikin RZAV140F2Y1 (14.0 kW cooling)
  • Fujitsu AOTG12KMTC (3.5 kW cooling)
  • Fujitsu AOTG18KMCB (5.0 kW cooling)
  • Fujitsu AOTG22KMCB (6.0 kW cooling)
  • Fujitsu AOTH18KBTA (5.0 kW cooling)
  • Fujitsu AOTH24KBTA (7.1 kW cooling)
  • Fujitsu AOTH24KMTE (7.1 kW cooling)
  • Fujitsu AOTH34KMTD (9.5 kW cooling)
  • Fujitsu AOTH36KBTA (10.0 kW cooling)
  • Fujitsu AOTH54KBTA (14.0 kW cooling)
  • Haier 1U25YAMFRA (2.5 kW cooling)
  • Haier 1U35MAMFRA (3.5 kW cooling)
  • Haier 1U50KAMFRA (5.0 kW cooling)
  • Haier 1U71KAMFRA (7.0 kW cooling)
  • Haier 1U90XADFRA (9.0 kW cooling)
  • Hisense HAWJ18KR-O (5.3 kW cooling)
  • Hisense HAWJ24KRP (7.1 kW cooling)
  • Hisense HAWJ9KR (outdoor HAWJ09KR-O) (2.5 kW cooling)
  • LG WH09SKNU-18 (2.5 kW cooling)
  • LG WH12SKNU-18 (3.5 kW cooling)
  • LG WH18SLU-19 (5.0 kW cooling)
  • LG WH24SLU-18 (7.1 kW cooling)
  • LG WH30SRU-18 (8.5 kW cooling)
  • LG WH34SRU-18 (9.4 kW cooling)
  • LG WS09TWU (2.6 kW cooling)
  • LG WS12TWU (3.4 kW cooling)
  • LG WS18TWU (4.8 kW cooling)
  • LG WS24TWU (6.3 kW cooling)
  • Mitsubishi Electric MUZ-AP25VGD2 (2.5 kW cooling)
  • Mitsubishi Electric MUZ-AP35VGD2 (3.5 kW cooling)
  • Mitsubishi Electric MUZ-AP50VGD2 (5.0 kW cooling)
  • Mitsubishi Electric MUZ-AP60VGD2 (6.0 kW cooling)
  • Mitsubishi Electric MUZ-AP71VGD2 (7.1 kW cooling)
  • Mitsubishi Electric MUZ-AP80VGD2 (7.8 kW cooling)
  • Mitsubishi Electric MUZ-EF35VGD (3.5 kW cooling)
  • Mitsubishi Electric MUZ-EF50VGD (5.0 kW cooling)
  • Mitsubishi Electric MUZ-LN25VGD (2.5 kW cooling)
  • Mitsubishi Electric MUZ-LN50VGD (5.0 kW cooling)
  • Mitsubishi Electric MUZ-LN60VGD (6.1 kW cooling)
  • Mitsubishi Electric PUZ-M100VKA2 (10.0 kW cooling)
  • Mitsubishi Electric PUZ-ZM100VKA2-A (10.0 kW cooling)
  • Mitsubishi Electric PUZ-ZM140VKA2-A (14.0 kW cooling)
  • Mitsubishi Electric PUZ-ZM71VHA2-A (7.1 kW cooling)
  • Mitsubishi Electric SUZ-M71VAD2-A (7.1 kW cooling)
  • Mitsubishi Heavy Industries DXC24ZTLA-WJ (7.1 kW cooling)
  • Mitsubishi Heavy Industries FDC140KXZEN1-W (14.0 kW cooling)
  • Mitsubishi Heavy Industries FDCA100VNA-W (10.0 kW cooling)
  • Mitsubishi Heavy Industries FDCA140VNX-W (14.0 kW cooling)
  • Mitsubishi Heavy Industries FDCA71VNX-W (7.1 kW cooling)
  • Mitsubishi Heavy Industries SRC25ZSA-W (2.5 kW cooling)
  • Mitsubishi Heavy Industries SRC35ZSA-W (3.5 kW cooling)
  • Mitsubishi Heavy Industries SRC35ZSXA-W (3.5 kW cooling)
  • Mitsubishi Heavy Industries SRC50ZSA-W (5.0 kW cooling)
  • Mitsubishi Heavy Industries SRC60ZSXA-W (6.0 kW cooling)
  • Mitsubishi Heavy Industries SRC63ZRA-W (6.3 kW cooling)
  • Mitsubishi Heavy Industries SRC71ZRA-W (7.1 kW cooling)
  • Mitsubishi Heavy Industries SRC95ZRA-W (9.5 kW cooling)
  • Panasonic CU-Z25XKR (2.5 kW cooling)
  • Panasonic CU-Z35XKR (3.5 kW cooling)
  • Panasonic CU-Z42XKR (4.2 kW cooling)
  • Panasonic CU-Z50XKR (5.0 kW cooling)
  • Panasonic CU-Z60XKR (6.0 kW cooling)
  • Panasonic CU-Z71XKR (7.1 kW cooling)
  • Panasonic CU-Z80XKR (8.0 kW cooling)
  • Rinnai HONRT25B (2.64 kW cooling (2.5 kW nominal))
  • Rinnai HONRT35B (3.5 kW cooling)
  • Rinnai HONRT50B (5.2 kW cooling (5.0 kW nominal))
  • Rinnai HONRT70B (7.0 kW cooling)
  • Rinnai HONRT80B (8.0 kW cooling)
  • Samsung AC052TXAPKG/SA (5.2 kW cooling)
  • Samsung AC071TXAPKG/SA (7.1 kW cooling)
  • Samsung AC090TXAPKG/SA (8.5 kW cooling)
  • Samsung AC100TXAPKG/SA (10.0 kW cooling)
  • Samsung AC100TXAPNG/SA (10.0 (3-phase) kW cooling)
  • Samsung AC120TXAPKG/SA (12.0 kW cooling)
  • Samsung AC140TXAPKG/SA (14.0 kW cooling)
  • Samsung AC160TXAPKG/SA (16.0 kW cooling)
  • Samsung AC160TXAPNG/SA (16.0 (3-phase) kW cooling)
  • Samsung AJ050TXJ2KH/EA (5.0 kW cooling)
  • Samsung AJ068TXJ3KH/EA (6.8 kW cooling)
  • Samsung AJ080TXJ4KH/EA (8.0 kW cooling)
  • Samsung AJ100TXJ5KH/EA (10.0 kW cooling)
  • Samsung AJ125TXJ5KH/EA (12.5 kW cooling)
  • Samsung AR09AXHQAWKXSA (2.48 kW cooling)
  • Samsung AR12AXHQAWKXSA (3.45 kW cooling)
  • Samsung AR18AXHQAWKXSA (5.14 kW cooling)
  • Samsung AR24AXHQAWKXSA (7.07 kW cooling)
  • Samsung AR24TXEABWKXSA (7.0 kW cooling)
  • TCL TAC-09CHSD/TPH11IT (outdoor unit of set) (2.6 kW cooling)
  • TCL TAC-12CHSD/TPH11IT (outdoor unit of set) (3.5 kW cooling)
  • TCL TAC-18CHSD/TPH11IT (outdoor unit of set) (5.2 kW cooling)
  • TCL TAC-24CHSD/TPH11IT (outdoor unit of set) (7.2 kW cooling)
  • TCL TAC-28CHSD/TPH11IT (outdoor unit of set) (8.2 kW cooling)
  • Toshiba RAS-07ZAVSG-A (2.0 kW cooling)
  • Toshiba RAS-10ZAVSG-A (2.5 kW cooling)
  • Toshiba RAS-13ZAVSG-A (3.5 kW cooling)
  • Toshiba RAS-16ZAVSG-A (4.2 kW cooling)
  • Toshiba RAS-18ZAVSG-A (5.0 kW cooling)
  • Toshiba RAS-22ZAVSG-A (6.0 kW cooling)
  • Toshiba RAS-24ZAVSG-A (7.1 kW cooling)
  • Toshiba RAS-2M18S3AV-A (5.2 kW cooling)
  • Toshiba RAS-3M26S3AV-A (7.5 kW cooling)
  • Toshiba RAS-4M27S3AV-A (8.0 kW cooling)
  • Toshiba RAS-5M34S3AV-A (10.0 kW cooling)

Based on manufacturer dimensions. Not listed? Compare your unit with "Fits units up to" in Specifications.

QuestionsFit, airflow, pipes, assembly, weather

Will it fit my air conditioner?

The Extra Large fits outdoor units up to W1120 x D510 x H1560 mm. That leaves the recommended space around the unit for airflow. The internal space is W1140 x D520 x H1570 mm. If your unit is bigger, choose a larger size or order a custom size.

How do I measure my unit?

Measure the width, depth and height of the outdoor unit at its widest points. Measure depth from the wall, including any valve cover on the side.

Does it block airflow?

No. The front, sides and top are louvred so air keeps moving around the unit. Keep the recommended clearance between the unit and the cover.

How do the pipes get in?

Each side and the top have a curved recess, 100 mm deep, at the back, so refrigerant pipes, drains and cables run straight in from the wall without cutting anything.

Does it work with wall-mounted units?

Yes. It stands on adjustable feet over a floor-standing unit, and it can also be fixed to the wall.

Is it hard to put together?

The panels slot together without tools in under 5 minutes. A drill with a Phillips head bit is then used for the 4 stabilising screws through the top panel, and for wall fixing if you choose to mount it.

Will it rust or handle coastal weather?

It is made from powder-coated aluminium, which won't rust and suits coastal areas.
