5.0 · 2 reviewsBatBox Home Battery Cover, Extra Large, White (W1000 x D550 x H1600 mm)
BatBox Home Battery Cover, Extra Large, White (W1000 x D550 x H1600 mm)
Couldn't load pickup availability
A solid-top aluminium cover that shields your home battery from sun and rain. Fits battery stacks up to W920 x D510 x H1560 mm, including Tesla Powerwall 2 and 3.
Full descriptionFeatures, dimensions and what's in the box

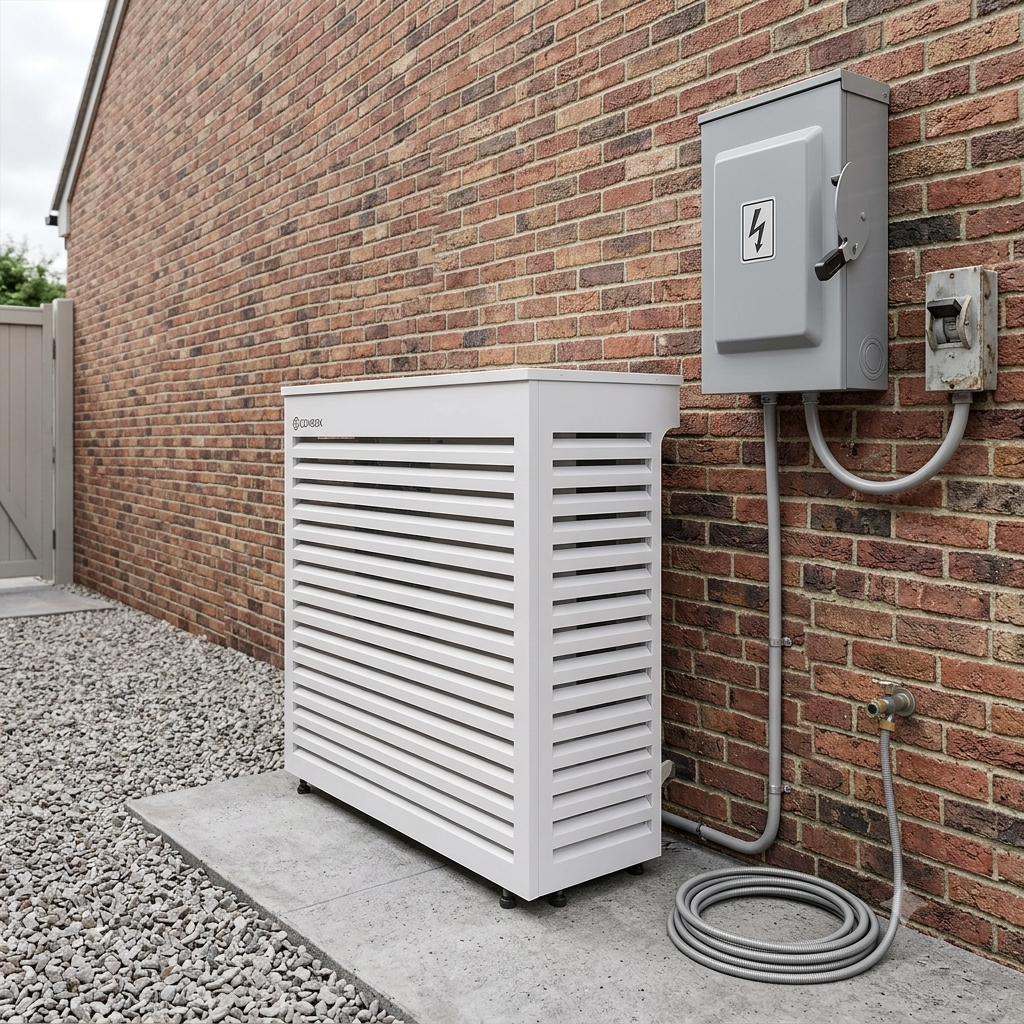

The BatBox Extra Large covers a home solar battery and inverter with a solid aluminium top that keeps direct rain, debris and midday sun off your equipment, while louvred sides let heat escape. It suits popular battery systems such as FoxESS, Tesla Powerwall, Sungrow, BYD, AlphaESS and GoodWe; measure your battery, inverter and conduit first to check the fit.
- Fits batteries up to W920 x D510 x H1560 mm (internal space W940 x D520 x H1570 mm)
- Solid top with no louvres, louvred sides for airflow
- 2 mm powder-coated aluminium in white: won't rust and suits coastal areas
- Curved recess, 100 mm deep, at the back, so cables and conduit enter cleanly against the wall
- Floor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall
- Arrives with one side riveted; the other side bolts on with the nuts and bolts supplied, then a drill fits the 4 stabilising screws
- Helps keep children and pets away from live electrical gear
- Also available in Large and custom sizes
Dimensions (mm)
External: W1000 x D550 x H1600 plus feet
Internal: W940 x D520 x H1570 plus feet
In the box
2 x panel sections (4-panel box) in powder-coated aluminium
4 x steel screws
6 x rubber feet, adjustable from 20 to 40 mm
Rivets, nuts and bolts for the bolt-on side
Helpful links
How to measure · Assembly instructions · Delivery and pickup · Returns
SpecificationsSizes, internal space, material, mounting
| External size | W1000 × D550 × H1600 mm, plus adjustable feet |
|---|---|
| Internal space | W940 × D520 × H1570 mm |
| Fits units up to | W920 × D510 × H1560 mm |
| Material | 2 mm aluminium, powder-coated |
| Colour | White |
| Weather | Won't rust; suits coastal areas |
| Mounting | Floor-standing on adjustable feet (adds 20 to 40 mm of height), or fixed to the wall |
| Assembly | Simple assembly, under 5 minutes plus optional wall fixing |
| Weight | 18.0 kg |
Batteries that fit (38)Search for your battery brand or model
- AlphaESS SMILE-BAT-10.1P (10.1 kWh (9.7 usable))
- AlphaESS SMILE-G3-BAT-9.3S (9.3 kWh)
- BYD Battery-Box Premium HVM 11.0 (11.04 kWh)
- BYD Battery-Box Premium HVM 13.8 (13.80 kWh)
- BYD Battery-Box Premium HVM 8.3 (8.28 kWh)
- BYD Battery-Box Premium HVS 10.2 (10.24 kWh)
- BYD Battery-Box Premium HVS 12.8 (12.8 kWh)
- BYD Battery-Box Premium HVS 5.1 (5.12 kWh)
- BYD Battery-Box Premium HVS 7.7 (7.68 kWh)
- Enphase IQ Battery 5P (IQBATTERY-5P-1P-ROW) (5 kWh)
- Fox ESS EP11 (10.36 kWh)
- Fox ESS EP6 Plus (5.76 kWh)
- Fronius Reserva 12.6 (12.6 kWh)
- Fronius Reserva 6.3 (6.3 kWh)
- Fronius Reserva 9.5 (9.5 kWh)
- GoodWe LX F12.8-H-20 (12.8 kWh)
- GoodWe LX F16.0-H-20 (16 kWh)
- GoodWe LX F19.2-H-20 (19.2 kWh)
- GoodWe LX F22.4-H-20 (22.4 kWh)
- GoodWe LX F25.6-H-20 (25.6 kWh)
- GoodWe LX F6.4-H-20 (6.4 kWh)
- GoodWe LX F9.6-H-20 (9.6 kWh)
- LG Energy Solution RESU10H Prime (9.6 kWh)
- LG Energy Solution RESU16H Prime (16 kWh)
- Sigenergy SigenStor (1 x BAT 8.0), e.g. 5T-8 / 10T-8 (8.06 kWh)
- Sigenergy SigenStor (2 modules), e.g. 10T-10 / 10T-13 / 10T-16 (10.76 to 16.12 kWh)
- Sigenergy SigenStor (3 x BAT 8.0), e.g. 10T-24 (24.18 kWh)
- Sigenergy SigenStor (4 x BAT 8.0), e.g. 10T-32 (32.24 kWh)
- Sungrow SBR064 (6.4 kWh)
- Sungrow SBR096 (9.6 kWh)
- Sungrow SBR128 (12.8 kWh)
- Sungrow SBR160 (16 kWh)
- Sungrow SBR192 (19.2 kWh)
- Sungrow SBR224 (22.4 kWh)
- Sungrow SBR256 (25.6 kWh)
- Tesla Powerwall 2 (AC) (13.5 kWh)
- Tesla Powerwall 3 (1707000) (13.5 kWh)
- Tesla Powerwall 3 Expansion (1807000) (13.5 kWh)
No match in our list. Check your unit's size against "Fits units up to", or order a custom size.
Based on manufacturer dimensions. Not listed? Compare your unit with "Fits units up to" in Specifications.
QuestionsFit, airflow, pipes, assembly, weather
Will it fit my battery?
The BatBox Extra Large fits batteries up to W920 x D510 x H1560 mm, leaving space around the battery. The internal space is W940 x D520 x H1570 mm. Bigger battery or a battery plus inverter? Order a custom size.
How do I measure my battery?
Measure the width, depth and height of the battery or battery stack at its widest points, including any brackets or isolators on the sides, then compare with 'Fits batteries up to'.
How do cables get in?
Each side and the top have a curved recess at the back, so conduit and cables run straight in from the wall without cutting anything.
Why a solid top?
BatBox has a solid top panel to shield the battery from direct sun and rain, with louvred front and sides for airflow.
How do cables and conduit get in?
The sides and top have a recess, 100 mm deep, at the back, so cables and conduit run straight in from the wall without cutting anything.
Is it hard to put together?
No. Assembly takes under 5 minutes, plus time to fix it to the wall if you choose to.
Will it rust or handle coastal weather?
It is made from powder-coated aluminium, which won't rust and suits coastal areas.
